Two, the implementation of standards

This product according to the enterprise standard Q/EC08-2009 design and manufacture.

Flame retardant frequency cable manufacturing according to corporate standards, the fire retardant properties to meet the requirements of GB/T19666.

Three, use

This product is applicable to the military, aerospace, steel, chemical,machinery, mining, automated assembly line, 1kV and below power control cable special inverter. With anti electromagnetic interference and balancedfield, anti lightning, fire burning, low effective capacitance, is beneficial to the fast action of automatic short circuit, so as to ensure the safe operation ofcables and related equipment.

Four, the use of the characteristics and technical performance

The frequency converter 1 XLPE insulated power cable connected with:

The maximum operating temperature of cable conductor of the normal operation of 90 DEG C.

Short circuit (the longest duration of not more than 5S) the conductor temperature of not more than 250 DEG C.

2 the laying of cables environment temperature not lower than 0 DEG C, the installation of the minimum bending radius: no less than 15 times of cablediameter.

The 3 conductor DC resistance should be in conformity with the provisions of GB/T3956.

4 power frequency withstand voltage test:

3.5kV/5min breakdown.

5 the technical performance

There is a strong impulse withstand voltage, can withstand pulse voltage at frequency conversion, the cable has good shielding property, and the effective elimination of electromagnetic interference, reduce the frequency conversionmotor noise, ensure the stable operation of the system. Especially thesymmetrical frequency cable has better electromagnetic compatibility, to a certain effect on the suppression of electromagnetic interference, frequencyoffset can be odd harmonics, improve the anti-interference of special cable converter motor, reduce the electromagnetic radiation in the system.

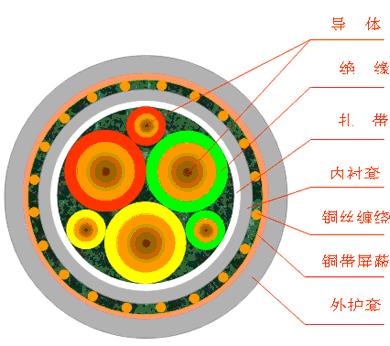

Five, model description

1 types of specifications

Core cross section and specifications
